Product Details
Compatible with Multiple Metals | One Machine for All Melting Tasks
Melting Materials List:
- Gold Bars
- Brass Rods
- Silver Ingots
- Aluminum Sheets
- Tin Ingots
- Magnesium Alloys
BOLI Energy-Saving Mini Melting Furnace
Core Advantages at a Glance
✅ Fast Temperature Rise
✅ Energy Saving & Low Power Consumption
✅ Max Melting Temperature: 1800°C
Product Specifications
Energy-Saving Mini Melting Furnace
| Item | Parameter |
|---|---|
| Product Name | Energy-Saving Mini Melting Furnace |
| Input Voltage | 220V / 50Hz~60Hz |
| Power Range | 3.5–5KW (Adjustable Output) |
| Max Melting Load | 1–4KG Metal |
| Peak Working Temp | 1800°C |
| Average Melting Time | 4–7 Minutes per Batch |
| Supported Metals | Gold, Silver, Copper & Their Alloys |
| Cooling Medium | Tap Water / Circulating Cooling Water |
| Overall Dimension | 270×270×350mm |
| Net Weight | 8–9KG |
Machine Structure Labeling
Front Top
- Induction Heating Coil
- Heat Insulation & Dust Baffle
- Heat Dissipation Vents
Control Panel
- Digital Display Meter
- Power Adjustment Knob
Rear Panel
- Power Cord
- Main Power Switch
- Water Pump Power Socket
- Water Outlet
- Water Inlet
- Dense Heat Dissipation Holes
Product Highlights
- Built with high-power semiconductor module technology, delivering strong, stable output power.
- Multi-layer safety protection: overvoltage, overcurrent, water shortage & overheat protection. Low failure rate, safe and reliable operation.
- Ultra-fast heating, low power consumption, low melting cost, excellent cost performance.
- Compact integrated frame design, lightweight, easy installation & simple operation. Internal concealed water pump for extra safety.
- Full-load output support, capable of 24-hour non-stop continuous operation.

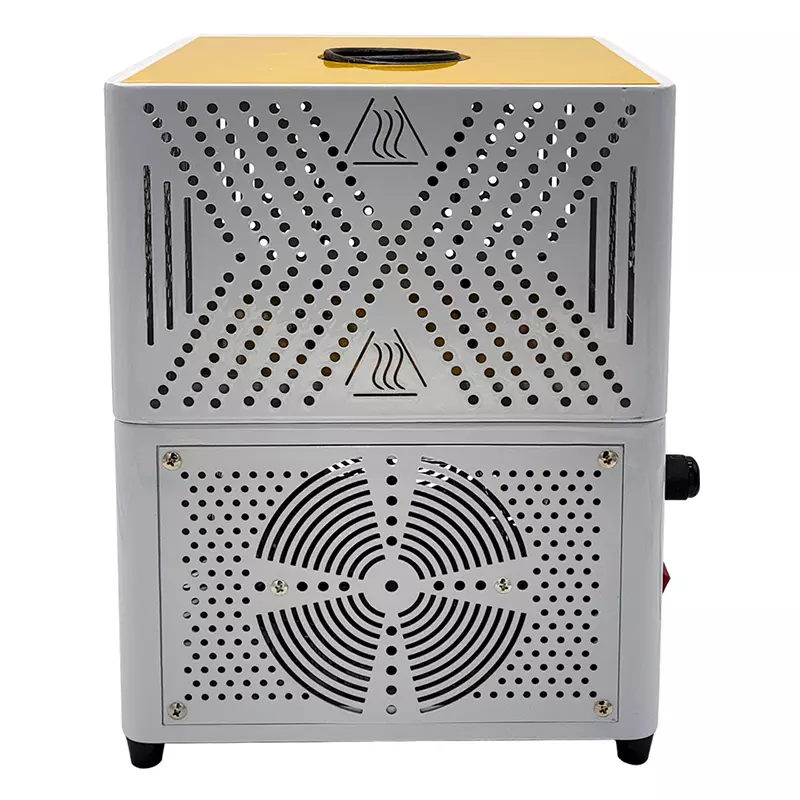

Dense Perforated Design for Uniform Heat Dissipation
Hundreds of evenly distributed cooling holes maximize air circulation, rapidly dissipate internal heat, protect internal circuits and extend machine service life.
Excellent Non-Stick Melting Performance
Smooth melting effect, clean molten metal, minimal adhesion to crucible.
Suitable for far more metal types as listed above.
Crucible Size & Capacity Chart
High Purity | High Strength | High Density Graphite Crucibles & Quartz Sleeves
| Product Name | Outer Dia (Top Ring) mm | Base Dia mm | Inner Dia mm | Height mm | Max Gold Load | Max Silver Load | Volume |
|---|---|---|---|---|---|---|---|
| 1KG Graphite Melting Crucible | 58 | 47 | 35 | 88 | 1kg | 0.5kg | 75ml |
| 1KG Quartz Protective Sleeve | 69 | 58 | 50 | 87 | — Protective Cover Only | — | — |
| 2KG Graphite Melting Crucible | 65 | 57 | 44 | 110 | 2kg | 1kg | 150ml |
| 2KG Quartz Protective Sleeve | 81 | 70 | 60 | 110 | — Protective Cover Only | — | — |
| 4KG Graphite Melting Crucible | 85 | 76 | 60 | 131 | 4kg | 2kg | 340ml |
| 4KG Quartz Protective Sleeve | 98 | 90 | 79 | 130 | — Protective Cover Only | — | — |
| 5KG Graphite Melting Crucible | 100 | 88 | 69 | 131 | 5kg | 2.5kg | 450ml |
| 5KG Quartz Protective Sleeve | 118 | 100 | 90 | 135 | — Protective Cover Only | — | — |
| 6KG Graphite Melting Crucible | 115 | 97 | 79 | 180 | 6kg | 3kg | 830ml |
| 6KG Quartz Protective Sleeve | 125 | 111 | 100 | 175 | — Protective Cover Only | — | — |
| 8KG Graphite Melting Crucible | 120 | 105 | 84 | 181 | 8kg | 4kg | 920ml |
| 8KG Quartz Protective Sleeve | 141 | 132 | 113 | 180 | — Protective Cover Only | — | — |
| 12KG Graphite Melting Crucible | 150 | 126 | 96 | 210 | 12kg | 6kg | 1400ml |
| 12KG Quartz Protective Sleeve | 157 | 147 | 130 | 205 | — Protective Cover Only | — | — |
Heavy-Duty Crucible Tongs
Stable & Labor-Saving Clamping
Extended tong tips to prevent high-temperature burns, firm grip for hot crucibles.
Frequently Asked Questions
Q1: Will the metal stick to the crucible?
A: Our standard crucible is made of high-purity graphite, the best material to avoid metal adhesion. Minor sticking may occur due to improper operation, different melting materials or working environment, which is normal.
Q2: How many times can one crucible be reused?
A: Graphite crucibles are consumables. Service life varies based on melting material, operation frequency and working conditions. Inspect the crucible before every use; replace it immediately if walls thin or cracks appear.
Q3: Can I melt gold powder / silver powder for refining?
A: Yes, this furnace supports precious metal powder melting. You need to control refining process parameters by yourself.
