Product Details
1. Compatible with Multiple Metals | One Machine for All Melting Needs
Melting Materials Supported:
Gold Bars, Brass Tubes, Silver Ingots, Aluminum Sheets, Tin Ingots, Tin Bars
2. BOLI Electric Melting Furnace
Melts Gold, Silver, Copper & Aluminum
- Max Temperature: 1150°C (Accurate Calibration, No False Temperature Labeling)
- Digital Temperature Display
- Adjustable Temperature Control
- Automatic Constant Temperature Function
3. Product Specification Chart
Versions available: Standard Version / High-end Version / Top-tier Version
| Item | Standard Version | High-end Version | Top-tier Version |
|---|---|---|---|
| Power | 1400–1750W | 1750–2100W | 2100–2400W |
| Power Supply | 110V/50–60Hz / 14A
|
110V/50–60Hz / 14A
|
110V/50–60Hz / 14A
|
| Temperature Accuracy | ±0.5%FS | ±0.5%FS | ±0.5%FS |
| Max Working Temp | 1150°C | 1150°C | 1150°C |
| Heat Insulation Handle | × | ✓ | ✓ (Dual Handles) |
| Heat Dissipation Sheets | ★★ | ★★★ | ★★★★ |
| Thermocouple Grade | Standard | Standard | Upgraded: Large Sunlight Screen, Big Font |
| Melting Capacity | 1–4KG | 1–4KG | Upgraded Large Capacity: 1–5KG |
| Overall Size (L×W×H) | 22×21×38cm | 35×25×38cm | 35×25×38cm |
| Net Weight | 8.2kg | 9.5–10.5kg | 9.5–10.5kg |
4. We Build Premium Melting Furnaces – No Cutting Corners
Compare Our Advantages:
- Same Appearance, Better Internal Quality
- Same Build, Lower Price
- Same Price, Better After-sales Service
Internal Component Comparison
- BOLI Furnace: Thickened pure copper heating coil, precise internal wiring, long service life, excellent heat insulation
- Generic Competitor Furnace: Thin heating wire, simple internal wiring, short service life
5. Detailed Product Structure Introduction
Marked Machine Parts
- Smoke Vent & Observation Window
- High-purity Graphite Crucible
- Heat Insulation Mesh Cover
- Copper Core Handle Ball
- Stainless Steel Side Handles
- Digital Temperature Controller
- Power Switch & Fuse Holder
- Brand Logo
- Anti-slip Rubber Foot Pads
Important Reminder: Many low-cost lookalike furnaces share identical exterior but use inferior internal materials. Appearance does not equal internal quality – choose genuine BOLI for reliable performance.
6. Automatic Temperature Control System
Max Adjustable Temperature: 1150°C
Real-time temperature monitoring & precise constant temperature locking
Temperature Controller Buttons
Setting Key, Shift Key, Down Key, Up Key
7. Product Gallery

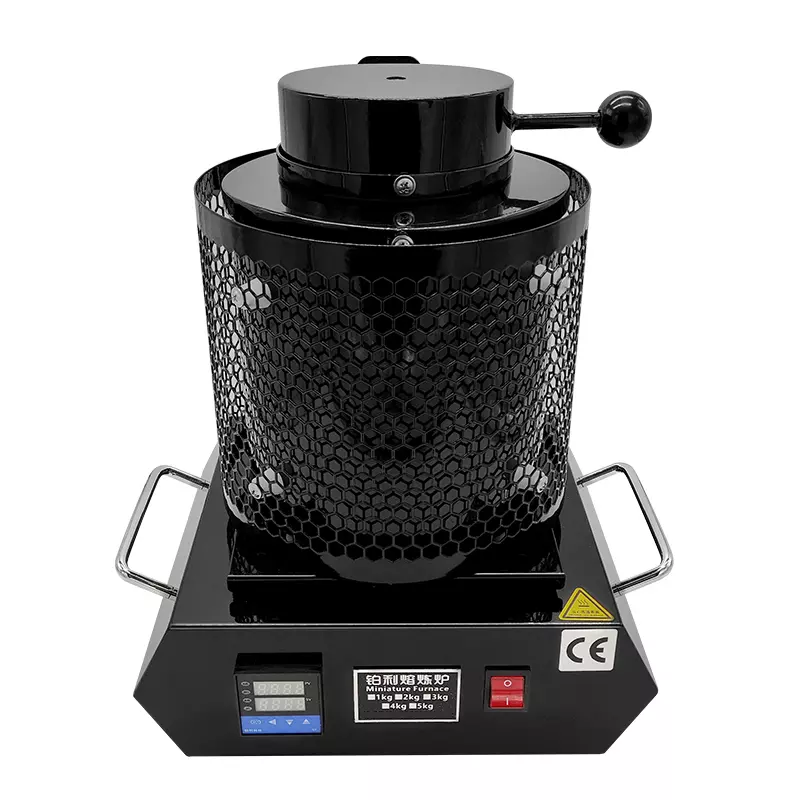

Top-tier Version
Multiple front & side full machine shots, mesh heat shield, dual handles, digital control panel display
High-end Version
Full machine multi-angle display, single side handle, large heat dissipation mesh
Standard Version
Compact body, single handle, entry-level control panel layout
8. Heavy-Duty Crucible Tongs
Stable & Labor-saving Clamping Design
Extended tong tips to prevent high-temperature burns, firm grip for hot crucibles
9. Graphite Crucible Size & Capacity Reference
Available Sizes: 1KG / 2KG / 3KG / 4KG
Custom voltage plugs for global use: Chinese, UK, EU, US plugs optional
10. Warm Important Reminders
This furnace operates at ultra-high melting temperatures. Core components will wear out after use. Deduction fees of $28–$42 will apply for returns due to component wear.
11. Frequently Asked Questions
Q1: Will molten metal stick to the crucible?
A: Our matching crucible is made of high-purity graphite, the optimal material to avoid metal adhesion. Minor adhesion may occur due to improper operation, different melting materials or working environments, which is a normal condition.
Q2: How many times can one graphite crucible be reused?
A: Graphite crucibles are consumable parts. Service life differs based on melting materials, operation frequency and working conditions. Inspect the crucible before every use; replace it immediately if walls thin or cracks appear.
Q3: Can I melt gold powder / silver powder for metal refining?
A: Yes, this furnace supports melting precious metal powder for refining. You need to independently adjust and control refining process parameters.
