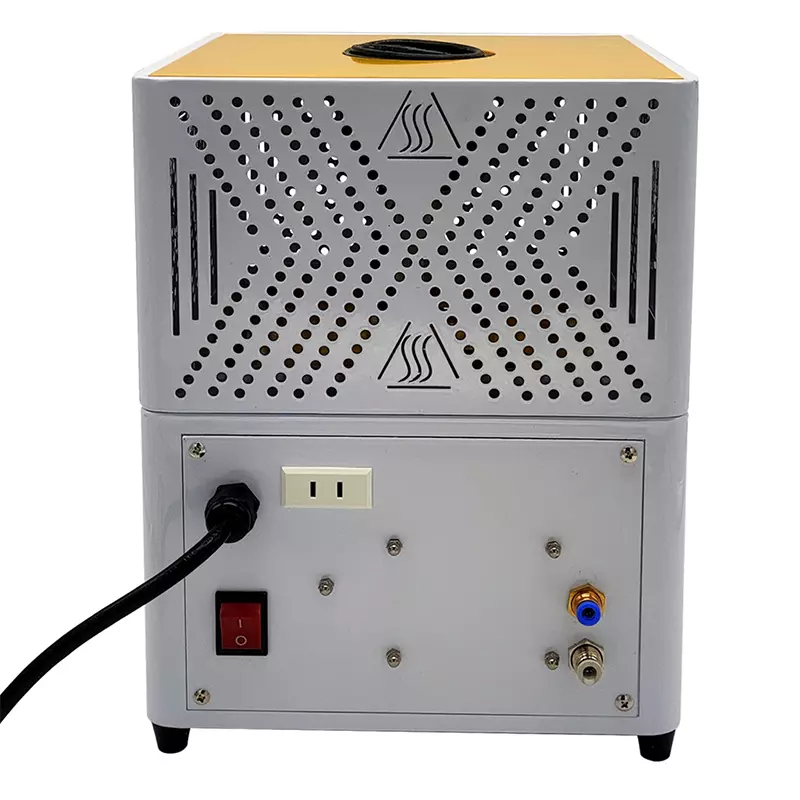

Energy-saving Mini Melting Furnace

MOQ: 100 Pieces

Delivery time: 15 Day

Product Details

Product Parameters

Energy-saving Mini Melting Furnace

Item	Specification
Product Name	Energy-saving Mini Melting Furnace
Voltage	220V / 50Hz~60Hz
Power	3.5-5KW (Adjustable Power Output)
Melting Capacity	1-4KG Metal
Max Temperature	1800°C
Melting Time	4-7 Minutes per Batch
Melting Materials	Gold, Silver, Copper and Their Alloys
Cooling Water Supply	Tap Water or Circulating Cooling Water
Overall Dimension	270×270×350mm
Net Weight	8-9KG

Product Highlights

Energy-saving Mini Melting Furnace

Adopts high-power semiconductor module technology, delivering stable and powerful output performance.
Built-in multi-protection systems against overvoltage, overcurrent, water shortage and overheating, featuring low failure rate and safe operation.
Rapid temperature rise, low power consumption & low melting cost with excellent cost performance.
Integrated frame structure, compact size & lightweight body for easy installation and operation. The water pump is fully concealed inside the machine for enhanced safety.
Supports full-load continuous operation for up to 24 hours non-stop working.

Graphite Crucible & Quartz Sleeve Specification Table

Product Name	Product Dimension (mm)				Melting Weight		Volume
	Outer Diameter (Top Ring)	Base Diameter	Inner Diameter	Height	Gold	Silver
1KG Graphite Melting Crucible	58	47	35	88	1kg	0.5kg	75ml
1KG Quartz Protective Sleeve	69	58	50	87	—— For Protection Only		——
2KG Graphite Melting Crucible	65	57	44	110	2kg	1kg	150ml
2KG Quartz Protective Sleeve	81	70	60	110	—— For Protection Only		——
4KG Graphite Melting Crucible	85	76	60	131	4kg	2kg	340ml
4KG Quartz Protective Sleeve	98	90	79	130	—— For Protection Only		——
5KG Graphite Melting Crucible	100	88	69	131	5kg	2.5kg	450ml
5KG Quartz Protective Sleeve	118	100	90	135	—— For Protection Only		——
6KG Graphite Melting Crucible	115	97	79	180	6kg	3kg	830ml
6KG Quartz Protective Sleeve	125	111	100	175	—— For Protection Only		——
8KG Graphite Melting Crucible	120	105	84	181	8kg	4kg	920ml
8KG Quartz Protective Sleeve	141	132	113	180	—— For Protection Only		——
12KG Graphite Melting Crucible	150	126	96	210	12kg	6kg	1400ml
12KG Quartz Protective Sleeve	157	147	130	205	—— For Protection Only
