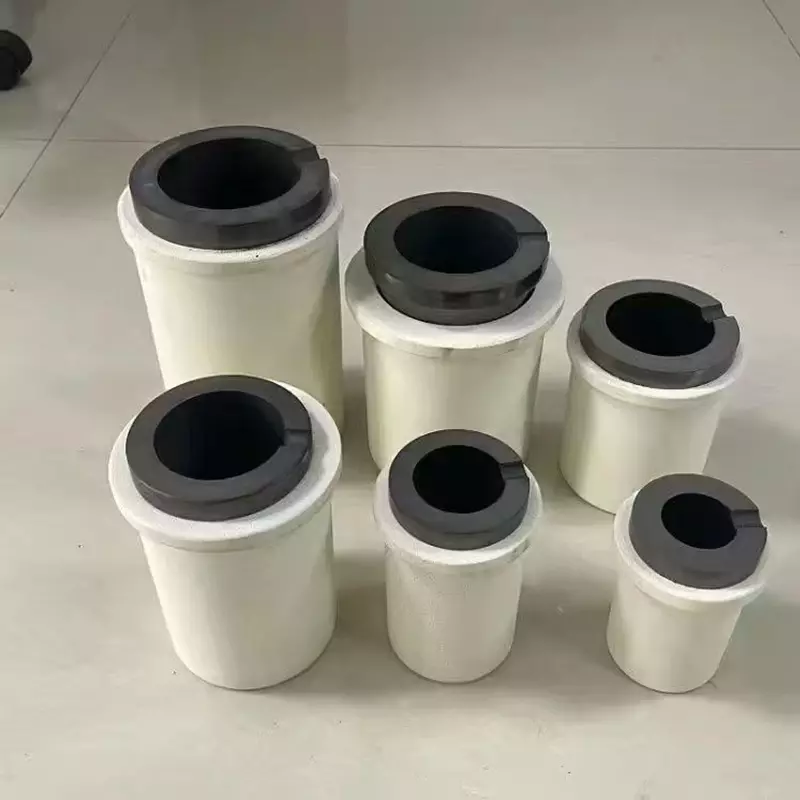

Single-Ring Crucible — Precision Melting Container for Precious Metals & High-Temperature Applications

Product Overview

The single-ring crucible is a classic structural type within the family of graphite and ceramic crucibles, named for the single reinforcing ring at its rim. This ring-shaped protrusion is not merely a decorative feature, but a functional design optimized for safe handling, thermal performance, and operational efficiency. Manufactured from high-purity graphite or high-grade alumina ceramic, our single-ring crucibles deliver exceptional thermal stability, chemical resistance, and mechanical strength for demanding melting and refining applications.

At Boli Technology, we offer a complete range of single-ring crucibles in both graphite and alumina material options, available in capacities from 0.5 kg to 30 kg. Each crucible is precision-engineered to ensure consistent performance, long service life, and compatibility with induction furnaces, electric resistance furnaces, and other heating systems.

Material Options

Graphite Single-Ring Crucible

• Made from high-purity graphite (≥99.9%) with high density (1.75–1.90 g/cm³)

• Withstands temperatures up to 3000°C in inert atmospheres

• Excellent thermal conductivity for rapid, uniform heating

• Chemically inert — does not react with gold, silver, platinum, or other precious metals during smelting

• Ideal for jewelry casting, precious metal refining, and laboratory analysis

Alumina (Ceramic) Single-Ring Crucible

• Made from 99%+ high-purity alumina (Al₂O₃) through high-temperature sintering

• Withstands temperatures up to 1750°C-

• Exceptional chemical stability and corrosion resistance-

• Excellent thermal shock resistance — withstands rapid temperature changes without cracking

• Ideal for chemical analysis, ashing, fusion, metallurgical testing, and ceramic manufacturing

Key Design Features

1. Single-Ring Structure for Safe & Stable Handling

The integrated single-ring edge design precisely accommodates crucible tongs, ensuring a stable, non-slip grip during high-temperature handling, placement, and transfer. The ring height is typically controlled between 15–25 mm, providing clamping stability without obstructing the view inside the furnace.

2. Faster Heating Rate

Compared to double-ring crucibles, the single-ring design eliminates the bottom support ring, allowing the outer wall to have greater direct contact with heating coils or flames. This results in a faster heating rate — particularly advantageous for jewelry casting operations that require frequent removal and replacement of molten metal.

3. Thermal Stress Reduction

The ring structure increases the thermal capacity of the rim, reducing the temperature difference between the edges and the center, and lowering the risk of thermal stress cracking during rapid heating and cooling cycles.

4. 360° Uniform Load-Bearing

The single ring provides a uniform load-bearing surface for crucible tongs, preventing localized stress concentration during clamping that could cause the rim to crack — extending crucible service life.

Technical Specifications

Standard Graphite Crucible Dimensions

Applications

Our single-ring crucibles are widely used across multiple industries:

• Jewelry Manufacturing — Melting and casting gold, silver, platinum, and precious metal alloys

• Precious Metal Recycling — Recovering gold, silver, and platinum from scrap jewelry and electronic waste

• Research Laboratories — High-temperature experiments, material analysis, ashing, and thermal testing

• Educational Institutions — Metallurgical demonstrations and student laboratory work

• Industrial Manufacturing — Non-ferrous metal smelting, including copper, aluminum, and alloys

Why Choose Boli Technology Single-Ring Crucibles?

• Premium Raw Materials — Sourced from select high-purity graphite and alumina suppliers, free from impurities

• Precision Manufacturing — Advanced CNC machining and high-temperature sintering processes ensure consistent quality

• Custom Sizes Available — OEM and ODM services supported for non-standard dimensions and specifications

• Rigorous Quality Control — Every crucible undergoes strict inspection before shipment

• Global Export Experience — Trusted by customers in over 20 countries

Ordering Information

• MOQ: Flexible — sample orders and bulk orders both welcome

• Packaging: Individually wrapped with protective materials, shipped in wooden cases to prevent damage during transit

• Lead Time: 3–20 days after order confirmation, depending on quantity and customization requirements

• Customization: Custom sizes, shapes, and material grades available upon request
